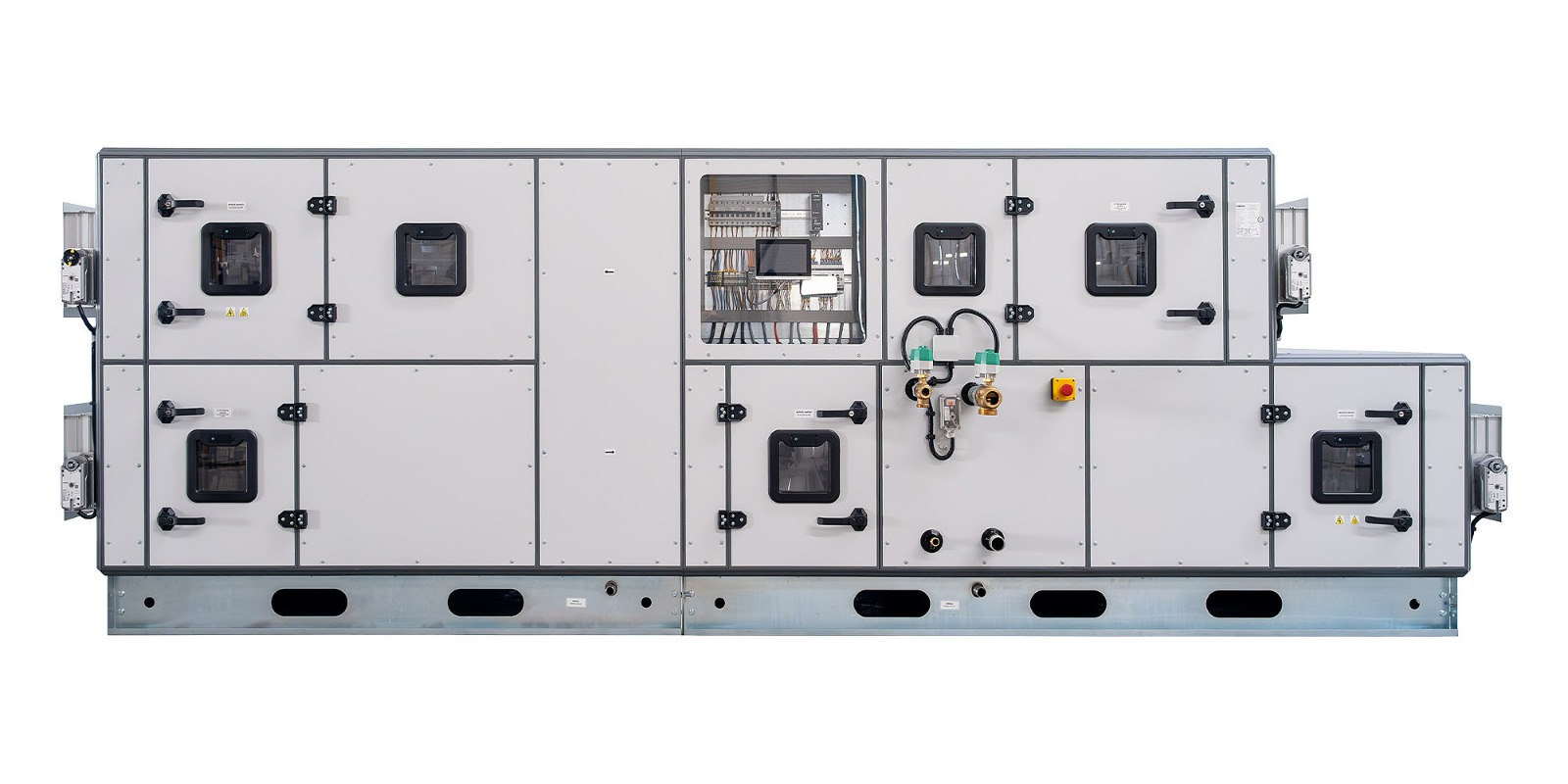

Air Handling Units

It can be produced using 50 mm or 60 mm thick panels with rock wool, glass wool or polyurethane insulation according to the request and application.

Exterior surfaces are painted sheet metal in RAL 9002 color as standard, and galvanized, painted or stainless sheet metal can be used on the interior surfaces according to demand and application.

Through to its flat inner surface, it is easy to clean and dust accumulation is prevented.

The back of the air handling units forms a strong structure with specially designed electrostatic oven-painted aluminum profiles and plastic corner connection elements. EPDM-based seals are used to ensure tightness

Filter selections are made taking into account the environment in which the device operates and the needs of the process.

High efficiency is achieved in coils and filters by preventing leaks that may occur during air flow with special designs.

For energy efficiency, which is of great importance today, plate, rotor or coil type heat recovery units are optionally used.

The fan-motor group is selected in the most efficient way by considering the air flow rate and total static pressure. Fans can be selected as forward curved dense bladed, backward curved sparse bladed, belt pulley or plug type according to the intended use and desired design criteria. Fans with approved performance tests are used. Motors are IP55 class as standard and comply with CE norms.

Dampers used in air handling units are manufactured using aluminum profile, aluminum blade and plastic based gears. The gears are outside the air flow. It provides sealing between specially shaped plastic gaskets and damper blades.
